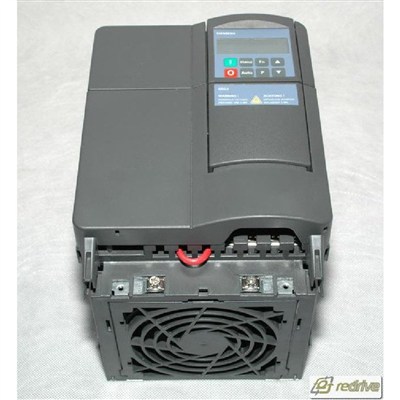

SIEMENS Variable Frequency Drive / Spindle SED2-4/42X 5.0HP 600V HV AC VFD Condition: Used. Tested. Fully refurbished. 6 Months limited warranty. Repair / Exchange with same day shipping options available.
The item pictured may not be the same as the one sold, but they all are guaranteed to be in working and in good cosmetic condition. (satisfaction guarantee) Variable frequency HVAC drive / spindle From a global leader in drives technology and innovation, now comes a drive specifically configured for HVAC applications. The SED2 variable frequency drives from the Siemens HVAC Products Division. Incorporating the latest advancements in IGBT technology, the SED2 is a PWM drive packed with all the standard features expected in a drive designed for HVAC variable torque applications. Many more unique design features make this variable frequency drive truly advanced.
All the Features You Would Want From an Advanced HVAC Variable Frequency Drive
-
Built-in SBT P1 and JCI N2 (Metasys) building automation system protocols for easy network integration -
Unique low harmonics design minimizing the need for external line reactors -
Built-in PID for fast and accurate pressure control -
Pump controller staging/cascading for constant pressure, constant flow applications -
Multi-level program access -
Belt failure detection with or without an external sensor -
Essential service mode for critical applications requiring continuous, uninterruptible operation -
Accepts a wide variety of digital and analog I/O types, including direct Ni 1000 sensor level inputs -
One common interface throughout all power ranges -
Optional Advanced Operator Panel (AOP) for uploading/downloading of parameters -
Full form C relay contacts for digital outputs SED2 Operation and Maintenance Manual Specification: | Part Number | SED2-4/42X | | Rated Input (+10% -10%) | 500 - 600VAC (3-Phase) 6.9Amp 47-63Hz | | Rated Output | 5.0HP 6.1Amp 0-150Hz | | Motor | 4.0kW (5Hp ; Input > 550V) | | Frame size | C | | Temperature Range | -10C to +40C (14F to 104F) | | Protection level | IP20 (NEMA Type 1 with protective shield and gland plate installed); IP54 (NEMA Type 12) | | VFD efficiency | 96 to 97% | | Overload capability | 110% for 60 seconds | | Control method | Linear V/f, parabolic V/f (fan curve); flux current control (FCC) low-power mode | | Setpoint resolution | 0.01 Hz digital 0.01 Hz serial 10 bit analog | | Digital inputs (sink/source) | 6: fully programmable and scalable isolated digital inputs, switchable | | Analog inputs | 2: 0 to 10VDC, 0/4 to 20 mA, can also be configured as digital inputs or Ni1000 input | | Serial interface | RS-485, SBT-P1; JCI-N2, Siemens USS bus (optional Modbus, LON) | | Analog outputs | 2: programmable (0/4 to 20 mA) | | Standards | UL, cUL, CE, C-tick | | Shipping weight | 13 lb |
