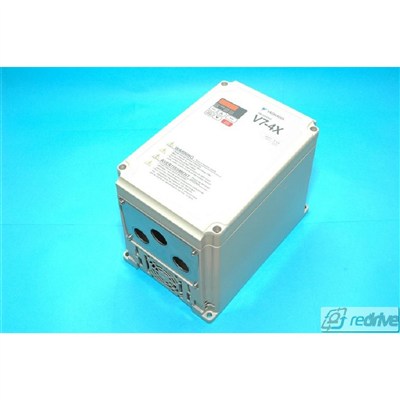

CIMR-V7CU43P7 Yaskawa V7-4X Varispeed V74X AC Drive 5HP 460V VFD
Condition: New.
High performance Variable Frequency AC Drive / Spindle for induction motors.
Features
The V74X Drive is low cost, compact, and operable in V/f or Open Loop Vector mode. In addition to good speed regulation, open loop vector control also provides higher torque at lower speeds. The V74X is ideally suited for applications such as conveyors, grinders, centrifuges, pumps, fans, blowers, machine tools, packaging, food processing, and commercial laundry. The V74X drive with integral NEMA 4X/12 enclosure is recommended for wet and dusty indoor environments, instead of the V7 drive. For DeviceNet network applications, the V7N with embedded Device Net is recommended. All functions standard V7 drive.
V74X Drive Documentation and Manual available
Specification:
| Category | AC Drives Inverters |
| Part Number | CIMR-V7CU43P74 or CIMR-V7CU43P7 or CIMR V7CU 43P7 |
| Rated Input | 380 - 460VAC (3-Phase) 12.5Amp 50-60Hz |
| Rated Output | AC3PH 5.0HP 8.6Amp 0-400Hz |
| Temperature Range | -10C to +40C (14F to 105F) |
| Protection level | NEMA4 ENCLOSURE Type 4X/12 |
| VFD efficiency | 95% |
| Overload capability | 150% for 60 seconds |
| Control method | V/F, Open loop vector control |
| Frequency resolution | 0.01 Hz with digital reference, 0.06 / 60 Hz with analog reference |
| Digital inputs | 7 multi-function digital inputs |
| Serial interface | RS-485/RS-422 serial communication port (up to 32 nodes) |
| Standards | UL, cUL, CE |
| Shipping weight | 17 lb |
