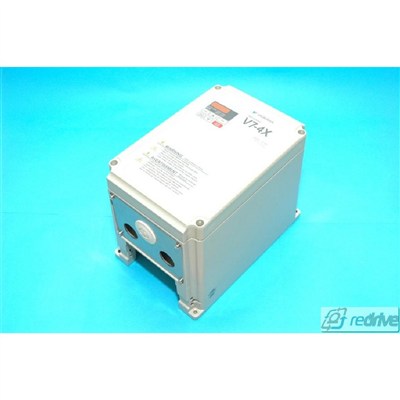

3HP 460V Yaskawa V7-4X Varispeed CIMR-V7CU41P54 V74X AC Drive VFD
Condition: NEW. 12 Months limited warranty. Repair / Exchange with same day shipping options available.
The item pictured may not be the same as the one sold, but they all are guaranteed to be in working and in good cosmetic condition. (satisfaction guarantee)
High performance Variable Frequency AC Drive / Spindle for induction motors.
Features
The V74X Drive is low cost, compact, and operable in V/f or Open Loop Vector mode. In addition to good speed regulation, open loop vector control also provides higher torque at lower speeds. The V74X is ideally suited for applications such as conveyors, grinders, centrifuges, pumps, fans, blowers, machine tools, packaging, food processing, and commercial laundry. The V74X drive with integral NEMA 4X/12 enclosure is recommended for wet and dusty indoor environments, instead of the V7 drive. For DeviceNet network applications, the V7N with embedded Device Net is recommended. All functions standard V7 drive.
V74X Drive Documentation and Manual available
Specification:
| Part Number | CIMR-V7CU41P54 or CIMR-V7CU41P5 or CIMR V7CU 41P5 |
| Rated Input | 380 - 460VAC (3-Phase) 7Amp 50-60Hz |
| Rated Output | AC3PH 3HP 4.8Amp 0-400Hz |
| Temperature Range | -10C to +40C (14F to 105F) |
| Protection level | NEMA4 ENCLOSURE Type 4X/12 |
| VFD efficiency | 95% |
| Overload capability | 150% for 60 seconds |
| Control method | V/F, Open loop vector control |
| Frequency resolution | 0.01 Hz with digital reference, 0.06 / 60 Hz with analog reference |
| Digital inputs | 7 multi-function digital inputs |
| Serial interface | RS-485/RS-422 serial communication port (up to 32 nodes) |
| Standards | UL, cUL, CE |
| Shipping weight | 16 lb |
