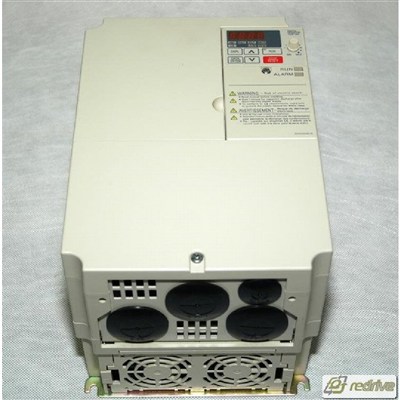

CIMR-V7AM25P51 Yaskawa / Magnetek V7 GPD315 AC Drive 7.5HP 230V VFD

Condition: Used. Tested. Fully refurbished. 6 Months limited warranty. Repair / Exchange with same day shipping options available.
The item pictured may not be the same as the one sold, but they all are guaranteed to be in working and in good cosmetic condition. (satisfaction guarantee)

High performance Variable Frequency AC Drive / Spindle for induction motors.

Features

• Earlier version of V7 Drive were named GPD 315/V7, GPD 315 or VS Mini V7.

• High performance AC drive for induction motors, providing low motor noise and high starting torque. The V7 provides two control methods; V/f and open loop vector control for precision speed regulation applications. In addition to good speed regulation, open loop vector control also provides higher torque at lower speeds. The V7 is intended for constant torque applications, with current overload rating of 150% for 60 seconds.

• The V7 is fully featured and compact. The digital operator provides 4-digit LED status display with a built-in analog speed potentiometer, as well as digital programming of almost 200 parameters. The digital pulse train input provides a precise frequency input, and is the perfect solution for speed / follower applications. The seven standard multi-function inputs can be programmed to allow for 17 preset speeds. The V7 also has an analog input, a multi-function output, two multi-function open collector outputs, and an analog output as standard.

• The V7 is ideally suited for applications such as conveyors, grinders, centrifuges, pumps, fans, blowers, machine tools, packaging, food processing, and commercial laundry.

• One of the outstanding options for the V7 is DriveWizard. This software enables upload, download, and monitoring of parameters. Another software, CASE, can add functionality to the drive by reconfiguring drive defaults, establishing presets for OEM equipment, and by eliminating peripheral controls and PLCs.

• A RS-485 Modbus RTU communication port is standard, allowing 32 nodes on a single network. Plug-in interface option boards enable the drive to communicate with all the major networks, such as DeviceNet, Profibus-DP, and others. The option board installs directly on the drive control board via simple snap-in connectors.

V7 Drive Documentation and Manual available

Specification:
